The Ultimate Guide to Tracked Mobile Cranes and Crawler Tech
What Is a Tracked Mobile Crane — and Why It Matters on Tough Job Sites
A tracked mobile crane is a self-propelled lifting machine that moves on continuous steel or rubber tracks instead of wheels — giving it the ability to operate on soft, uneven, or rough ground where wheeled cranes simply can’t go.
Quick answer: What is a tracked mobile crane?
| Feature | Tracked Mobile Crane |
|---|---|
| Undercarriage | Continuous crawler tracks |
| Ground pressure | Low — weight spread over large track area |
| Terrain | Rough, soft, uneven, slopes |
| Mobility | Self-propelled; no road permit needed on site |
| Lifting capacity | From under 1 tonne (mini) to 4,000+ tonnes |
| Typical use | Construction, wind energy, industrial, civil works |
These machines sit in a unique category. They combine the on-site mobility of a mobile crane with the stability and high-capacity lifting of a traditional crawler crane. Whether you need to hoist a 2,600-ton reactor at a refinery or lift a steel beam through a narrow building opening, there is a tracked crawler configuration built for that job.
The range is enormous. Mini crawler cranes can weigh as little as a few hundred kilograms and squeeze through a standard doorway. At the other extreme, the XCMG XGC88000 weighs 5,350 tons and holds a maximum lifting capacity of up to 4,000 tons — making it one of the largest self-propelled machines ever built.
For construction project managers in Pennsylvania and the surrounding region, understanding this technology means better lift planning, fewer delays, and safer outcomes on complex projects.
I’m Dave Brocious, and with over 30 years of experience in strategy, sales, and operations — including leading the Sky Point Crane team through demanding tracked mobile crane projects across Pennsylvania, Ohio, West Virginia, and Maryland — I’ve seen how the right crawler equipment can make or break a project timeline. In the sections below, I’ll walk you through everything you need to know to make confident equipment decisions.
Tracked mobile crane terms at a glance:
Understanding the Tracked Mobile Crane and Crawler Technology
To truly understand a tracked mobile crane, you have to look closely at its foundation: the crawler undercarriage. Unlike wheeled models that rely on rubber tires, these machines sit on continuous track assemblies. This basic engineering choice fundamentally changes how the crane interacts with the ground beneath it.
When a crane lifts a heavy load, that weight has to go somewhere. On a standard Mobile Crane, the entire weight of the machine and its load is concentrated on a few small points where the tires or outrigger pads touch the dirt. This is known as point loading. If the ground is soft, muddy, or uncompacted, those contact points can sink or fail, leading to catastrophic tipping hazards.

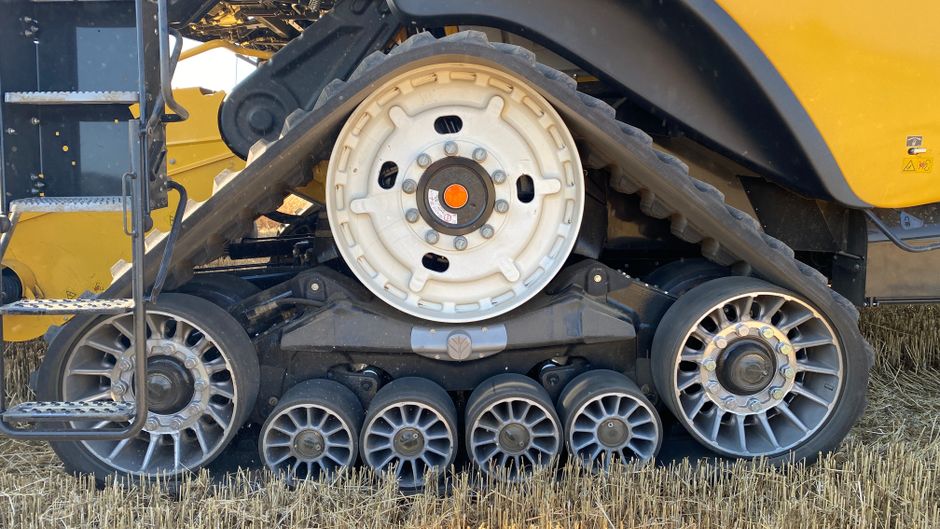

Crawler undercarriages solve this by distributing the total operating weight across the entire surface area of the tracks. By spreading thousands of pounds over several square yards of continuous steel or heavy-duty rubber, the ground pressure is kept to an absolute minimum. This allows the crane to maintain exceptional stability on unstable soils without needing massive, engineered timber mats or concrete pads at every turn.
Key Differences: Tracked Mobile Crane vs. Wheeled Mobile Crane
Choosing between tracks and wheels isn’t just about aesthetics; it is a critical project management decision that impacts your timeline, budget, and safety protocols.
The table below breaks down how these two design philosophies stack up in real-world scenarios:
| Feature | Tracked Mobile Crane | Wheeled Mobile Crane |
|---|---|---|
| Ground Contact | Massive surface area (continuous tracks) | Small contact patches (tires / outriggers) |
| Ground Bearing Capacity Required | Low to moderate (excellent weight distribution) | High (requires highly compacted ground or extensive matting) |
| On-Site Mobility | Can travel fully assembled with a load (Pick & Carry) | Must retract boom and outriggers before moving |
| Setup Time on Site | Minimal; often ready to work immediately | Longer; requires setting outriggers and pads |
| Road Travel | Must be transported via trailer to the job site | Can drive directly on public roads (all-terrain models) |
| Max Lifting Capacity | Virtually unlimited (up to 4,000 tons) | Typically capped around 1,200 tons |
Wheeled all-terrain cranes, like the heavy-duty GROVE GMK6450-1 | All-Terrain Cranes, are engineering marvels that can drive on the highway and set up quickly using variable outrigger systems. However, on a dynamic job site where the crane needs to lift a load in one spot, carry it across a muddy field, and place it in another, a wheeled crane is out of its element. That is where the tracked mobile crane shines.
Telescopic vs. Lattice Boom Configurations
Once you select a tracked undercarriage, the next big decision is the boom style. Tracked cranes generally fall into two categories based on their boom design:
- Telescopic Boom Crawlers: These machines use hydraulic cylinders to extend and retract a solid, multi-section boom. They offer incredible setup logistics because they can be driven off a trailer and have the boom fully extended within minutes. They are highly compact and perfect for tight spaces. A prime example is the Telescopic crawler crane LTR 1060 – Liebherr, which combines the quick-setup nature of a hydraulic crane with the go-anywhere mobility of a crawler.
- Lattice Boom Crawlers: These cranes utilize a lightweight, high-strength steel framework assembled in sections. While they offer much higher lifting capacities and longer reaches, they require significant transport logistics. You need multiple support trucks to haul the boom sections, counterweights, and components, along with an assist crane and a dedicated crew to assemble the boom on-site.
For projects where mobilization speed and a compact footprint are key, telescopic tracked cranes are the go-to choice. For heavy industrial construction or ultra-heavy infrastructure lifts, lattice crawlers are indispensable.
Key Advantages of Crawler-Tracked Cranes on Site
When you are managing a site in the rolling hills of Western Pennsylvania or the muddy valleys of West Virginia, terrain is your biggest enemy. Tracked mobile cranes offer distinct advantages that keep projects moving forward when the weather turns sour.
Unlike standard truck cranes or even specialized Rough Terrain Crane models, tracked crawlers do not need to be perfectly leveled on outriggers to complete every lift. Their wide footprint provides an inherent level of stability that allows them to perform “pick-and-carry” operations — lifting a load and walking with it across the site.
Unmatched Stability and Low Ground Pressure
The primary reason to specify a tracked mobile crane is its ability to handle challenging ground conditions. In our region, clay-rich soils, frequent rain, and winter freeze-thaw cycles can turn a pristine job site into a soup of mud and ruts in a matter of hours.
Because crawler tracks distribute weight so evenly, these cranes can safely navigate and operate on soft soils, sand, and uncompacted gravel. Additionally, many modern telescopic crawler cranes are engineered to operate safely on lateral slopes of up to 4 degrees. This means operators do not have to spend hours grading and leveling the ground perfectly flat before they can start making lifts, saving valuable project hours.
Articulated and Mini Tracked Mobile Crane Versatility
At the smaller end of the spectrum, tracked technology has revolutionized indoor and tight-space lifting. Mini crawler cranes, often referred to as spider cranes, feature compact bodies mounted on rubber tracks.
These mini crawlers can navigate narrow alleys, fit through standard double doors, and operate on suspended floors where a heavier machine would cause structural damage. By utilizing bi-energy systems — combining a clean diesel engine for outdoor travel with a 100% electric power pack for indoor use — these machines can work inside hospitals, food processing plants, and schools without emitting fumes.
For projects requiring extreme maneuverability, you can read more about how these compact powerhouses operate in our guide on Everything You Need to Know About Tracked Spider Crane Technology.
Technical Specifications: Lifting Capacities and Reach
The sheer variety of tracked mobile cranes means there is a model for almost any scale of work. Let’s look at how lifting capacities and reach specifications break down from massive industrial giants to micro-sized interior lifters.
To put these numbers in perspective, a top-tier wheeled mobile crane like the Mobile crane LTM 1230-5.1 – Liebherr can lift up to 230 tonnes (275 US tons) and reach a maximum height of 111 meters. While that is incredibly impressive for a wheeled vehicle, tracked crawler cranes push those boundaries even further.
Heavy-Duty and Ultra-Heavy Lifting Capacities
In mega-projects — such as nuclear power plant construction, wind turbine erection, and petrochemical refinery installations — lifting requirements are measured in thousands of tons.
The absolute giants of the industry include:
- The XGC88000: This massive machine features a lifting capacity of 3,600 to 4,000 tons. It has a total gross weight of 5,350 tons and features a maximum boom length of 144 meters (total system length of 173 meters). It utilizes three independent Cummins engines that can act as mobile hydraulic power stations to run its immense systems.
- The Liebherr LR 13000: Previously holding the record for the largest conventional crawler crane, this machine can lift up to 3,000 tonnes and is commonly used for heavy industrial construction where loads must be placed at extreme radii.
These heavy-duty crawlers rely on massive counterweight trays, often towed on their own tracked assemblies behind the main crane, to balance the immense tipping forces of ultra-heavy lifts.
Compact and Mini Crawler Specifications
On the other end of the spectrum, mini crawler cranes provide precision and strength in incredibly small packages. If you are looking to hire a compact machine, models like the MCC1005 offer:
- Lifting Capacities: Ranging from 990 kg (about 1 ton) up to 10 tonnes.
- Reach: Maximum lifting heights of up to 25 meters when equipped with an optional fly jib.
- Compact Footprint: Narrow stowed widths as small as 1.35 meters, allowing them to squeeze through tight gates or warehouse doors.
These compact units are highly sought after for glass installation, steel erection in tight urban infill sites, and industrial maintenance. You can explore our Spider Crane options to see how these compact tracked units can fit your specific project needs.
Operational Logistics, Safety, and Modern Advancements
Operating a tracked mobile crane requires careful planning, strict safety adherence, and an understanding of the logistics involved in moving these heavy machines from site to site. Because they cannot drive on public roads, transportation is a major factor in your project planning.
To ensure everything runs smoothly, we always recommend consulting professional Crane Safety Protocols before mobilizing heavy equipment.
Transportation and Setup Requirements
Getting a tracked crane to your job site in Ohio, Pennsylvania, or West Virginia requires a coordinated transport plan.
For mid-sized telescopic crawlers like the Liebherr LTR 1060, transport is relatively simple. The crane is designed to be transported as a single unit, with a transport width of just 3.0 meters and a height of 3.15 meters, allowing it to travel on standard lowboy trailers without requiring complex permits or escort vehicles in most jurisdictions.
For larger crawler cranes, the mobilization process looks a bit different:
- Disassembly: The tracks, counterweights, and boom sections must be removed and loaded onto separate flatbed trailers.
- Extendable Tracks: Many modern tracked cranes feature hydraulically extendable track assemblies. For transport, the tracks are retracted to meet legal highway width limits. Once on-site, they are hydraulically pushed outward to create a wider, more stable lifting footprint.
- Track Tensioning: Operators must regularly check and adjust track tension using integrated hydraulic jacks and shims to prevent the tracks from slipping or wearing prematurely on rough terrain.
Eco-Friendly Innovations and Safety Systems
The crane industry has made massive strides in reducing emissions and improving safety over the last few years.
Several modern mini and mid-sized tracked cranes are equipped with Euro Stage V compliant diesel engines, allowing them to work in strict low-emission zones. Furthermore, many manufacturers have embraced HVO (Hydrotreated Vegetable Oil) ready technology, which can reduce net CO2 emissions by up to 90% compared to conventional diesel.
On the safety front, advanced systems have made crane operation more precise than ever:
- VarioBase® and MAXbase™: These systems calculate the crane’s lifting capacity in real-time based on the exact position of its tracks or outriggers, allowing for safe operation in tight, asymmetrical setups.
- Zero-Emission Electric Options: Cranes like the MK 73-3.1 mobile construction crane – Liebherr can run entirely on site electric power once set up, eliminating noise and local emissions entirely.
Frequently Asked Questions about Tracked Mobile Cranes
What is the difference between a tracked mobile crane and a standard crawler crane?
While the terms are often used interchangeably, a “tracked mobile crane” typically refers to a telescopic boom crawler crane (like the Liebherr LTR series). These machines can retract their booms hydraulically and are highly compact, making them fast to set up and move. A traditional “crawler crane” usually refers to a larger, lattice-boom machine that requires extensive on-site assembly and multiple transport trucks to mobilize.
Can a tracked mobile crane perform pick-and-carry operations?

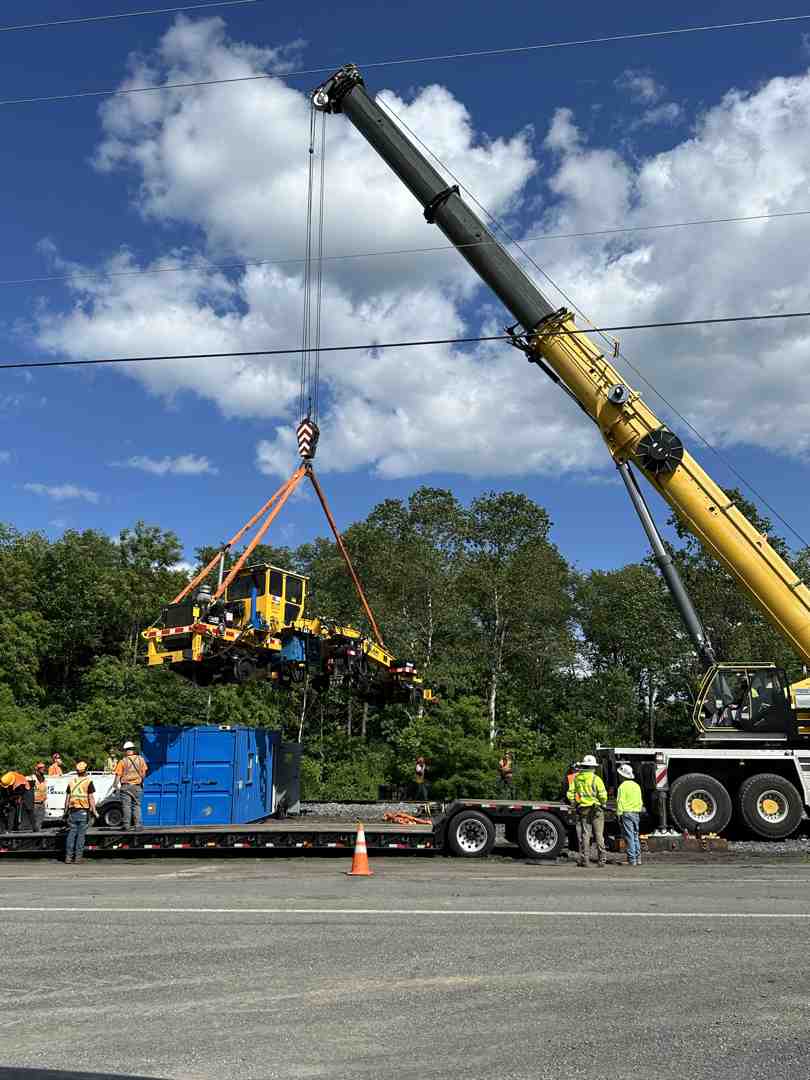

Yes! One of the biggest advantages of a tracked mobile crane is its ability to lift a load and travel with it. Because the weight is distributed across wide tracks rather than concentrated on outriggers, the crane remains highly stable while moving, provided the ground is relatively level and the load is properly secured.
What industries benefit most from tracked mobile cranes?
Tracked mobile cranes are heavily utilized in:
- Wind Energy: For erecting and maintaining wind turbines on steep, unpaved ridges.
- Civil Engineering: For bridge construction, highway projects, and piling work.
- Industrial Maintenance: Moving heavy machinery inside factories or refineries with tight clearances.
- Urban Construction: Squeezing into tight city lots where outriggers won’t fit.
Conclusion
Whether you are managing a complex industrial expansion in Pittsburgh, setting wind turbines in the mountains of West Virginia, or executing a tight urban lift in Columbus, Ohio, selecting the right tracked mobile crane can dramatically improve your site safety and operational efficiency.
At Sky Point Crane, we specialize in matching the perfect lifting technology to your specific project challenges. From compact spider cranes to heavy-duty crawlers, we offer comprehensive crane rental and rigging services throughout Western and Central Pennsylvania, Ohio, West Virginia, and Maryland.
Our team of NCCCO-certified operators, project managers, and lift planners utilizes advanced 3D Lift Planning software to model every lift down to the inch before our equipment ever arrives on your site. This meticulous preparation ensures your project is completed safely, on time, and within budget.
