The Vital Role of Cranes in Electrical Transmission Line Construction
Crane use in the construction of electrical transmission lines is essential throughout every phase of the building process, from foundation work to final conductor stringing. If you’re searching for information about this topic, here’s what you need to know:
- Foundation stage: Cranes with auger attachments drill foundation holes 15-30 feet deep for lattice towers or 40-60 feet for tubular steel poles
- Structure assembly: Specialized climbing jib cranes or mobile cranes lift and position tower sections
- Conductor stringing: Cranes support tensioning equipment and help install guard structures at road crossings
- Safety requirements: Minimum clearance of 10 feet for lines up to 50kV, with greater distances for higher voltages
The danger of operating cranes near power lines cannot be overstated. Contact between cranes and overhead power lines is the most common cause of crane-related fatalities in construction, responsible for approximately 32% of all such deaths between 1992 and 2006.
Why is this topic critical? Transmission line construction requires specialized lifting techniques that balance the need for precision placement with strict safety protocols. Without proper crane operation, projects face not only deadly safety risks but also significant inefficiencies and potential damage to expensive electrical components.
I’m Dave Brocious, Executive Director at Sky Point Crane, with over 30 years of experience overseeing crane use in the construction of electrical transmission lines throughout Western Pennsylvania and beyond, specializing in developing strategic lifting solutions that prioritize both safety and efficiency for our utility clients.
Why This Guide Matters
The statistics surrounding crane-related accidents in power line construction are sobering. From 1992 to 2006, 32% of crane-related fatalities in construction were due to contact with overhead power lines. In 1981 alone, there were approximately 2,300 lost workday occupational injuries resulting from contact with electrical current by crane booms, cables, or loads, including 115 fatalities and 200 permanent total disabilities.
OSHA’s Subpart CC regulations for Cranes and Derricks in Construction were specifically developed to address these hazards, providing comprehensive guidelines for working near energized lines. Understanding and implementing these regulations isn’t just about compliance—it’s about saving lives.
At Sky Point Crane, we’ve acceptd advanced 3D Lift Planning technology to visualize potential hazards before they become problems. This approach allows us to map out clearance zones, identify potential interferences, and ensure our operators have a clear plan before the first outrigger touches the ground.
Crane Types & Roles Across Transmission Line Construction
When you’re building electrical transmission lines, having the right crane for each job makes all the difference. It’s like having the perfect tool in your toolbox – it just makes everything work better.
Climbing Jib Cranes are the specialists of tower assembly. These remarkable machines can actually attach to the tower structure itself, allowing crews to build from the bottom up with incredible precision. I’ve seen models like the KS-20, KS-36, and KS-65 in action, and they’re engineering marvels. The KS-20 offers a 2-ton capacity at a 10-meter radius and can lift components up to 116 meters high. The bigger KS-36 handles 2.85 tons at 12.6 meters with a lift height of 174 meters, while the heavyweight KS-65 manages 4.4 tons at nearly 15 meters and reaches an impressive 254 meters high.
Truck & All-Terrain Cranes are the versatile workhorses of transmission line projects. These machines shine when your project stretches across miles of varying landscapes. One day they’re setting foundation cages, the next they’re assembling tower sections, and then they’re quickly relocating to the next site. Their mobility makes them invaluable for keeping projects on schedule.
Rough-Terrain Cranes are the off-road champions of the crane world. When transmission lines cut through forests, hills, or wetlands with barely a path to follow, these specialized machines prove their worth. Their robust design and all-wheel steering let them steer the challenging landscapes where power lines often need to run.

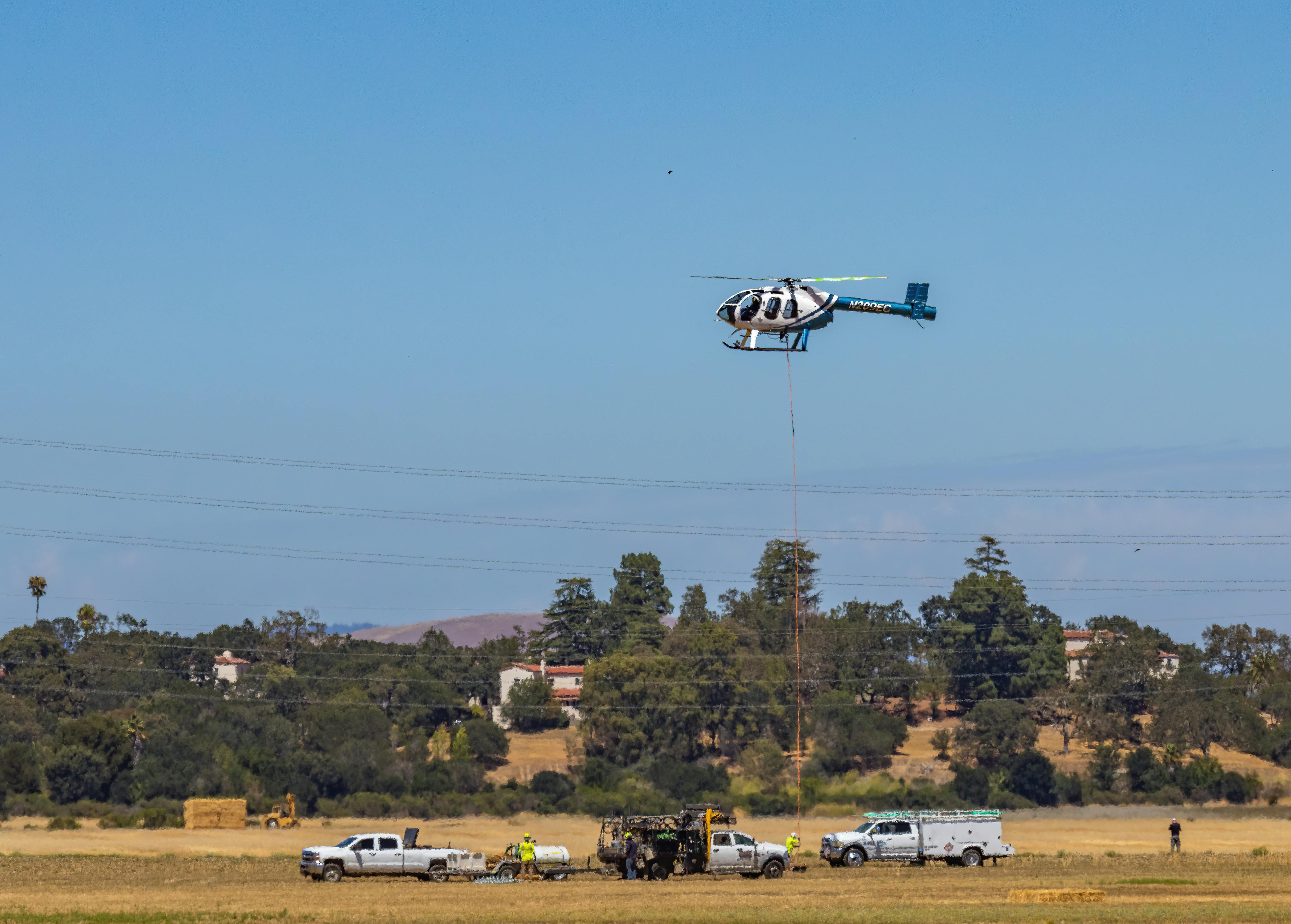

Sometimes, even the most capable ground-based crane can’t reach certain locations. That’s when Helicopters step in as aerial cranes. As one of our contractors working in Graysville, Ohio put it: “As crazy as it sounds, sometimes helicopters are the safer option.” They excel at pilot-line operations, flying lightweight lines through insulator rollers that will later guide the heavier conductors into place.
Foundation & Access Work
Every great transmission line starts from the ground up – literally. At Sky Point Crane, we’ve perfected the foundation phase of these massive projects.
Our crane-mounted Auger Rigs bore deep into the earth, creating the critical foundation holes for transmission structures. The dimensions vary considerably based on the structure type. For lattice steel towers, we typically drill holes 3-4 feet wide and 15-30 feet deep. Tubular steel poles demand even more substantial foundations, often requiring excavations 8-12 feet in diameter and reaching depths of 40-60 feet.
Once these impressive holes are drilled, our cranes delicately lower steel reinforcement cages into position. We then use concrete buckets to deliver precisely measured pours of foundation material. The accuracy here is non-negotiable – even a slightly misaligned foundation can create headaches throughout the entire project lifecycle.
Our cranes also play a crucial supporting role in building the access roads that serve the project. They help place culverts, move drainage materials, and position erosion control measures – creating the infrastructure that makes the rest of the project possible.
Structure Assembly Lifts
Tower assembly is where crane use in the construction of electrical transmission lines truly becomes an art form. This phase demands precision, patience, and expert coordination between operators and ground crews.
Section Picks involve moving pre-assembled tower components into their final positions. To maximize efficiency and safety, these components are typically assembled near the installation site. This approach minimizes the lifting radius and allows us to use the crane’s capacity most effectively. For lattice towers, we often assemble sections horizontally on the ground, then use our cranes to rotate them into vertical position for attachment.
The Top-Out operation is the crown jewel of tower assembly. This final lift places the uppermost section of the tower, often with clearances measured in mere inches. Our NCCCO-certified operators rely on their extensive training and clear communication with ground personnel to execute these lifts flawlessly.
Tag-Line Use might seem like a minor detail, but it’s actually critical to safe operations. When working near energized lines, we exclusively use non-conductive tag lines to eliminate potential electrical pathways. This simple but vital practice has prevented countless accidents throughout the industry.
I remember a particularly challenging project along a steep ridgeline in Western Pennsylvania, where we needed to set several 120-foot lattice towers. By carefully positioning our cranes and using our 3D lift planning software to map out each move in advance, we finished the structure assembly three days ahead of schedule. The wire-stringing crews were thrilled to start early!
Conductor Stringing Support
The final phase of transmission line construction brings its own unique challenges, and our cranes are essential to supporting the conductor stringing process.
Our cranes carefully position Tensioners that maintain precise pressure on the conductors as they’re pulled through the structures. These machines ensure the lines don’t sag too much or become too tight – both potentially dangerous conditions.
Working in tandem with tensioners, Pullers draw the conductor through the line of structures. Our crane operators position these machines with careful attention to line angles and terrain features to achieve the perfect conductor placement.
Guard Structures are temporary protective frameworks that we install over roads, railways, and existing utilities. These structures, which typically resemble an inverted “V” or goal post design, prevent accidental contact during the stringing process. Our cranes are essential for installing these safety systems quickly and securely.
Achieving the proper conductor sag is a science unto itself. Conductors expand when hot and contract when cold, so they must be installed with precisely calculated tension. Too much sag creates clearance issues with the ground or structures below; too little creates excessive stress on the towers. At Sky Point Crane, our operators work hand-in-hand with line engineers to achieve these exacting specifications, ensuring the lines will perform safely for decades to come.
Regulatory & Safety Essentials for High-Voltage Lifting
When it comes to crane use in the construction of electrical transmission lines, following regulations isn’t just about checking boxes—it’s about everyone going home safely at the end of the day. I’ve seen how these rules protect our teams when properly followed.
The regulatory framework is comprehensive, built from hard lessons learned in the field. OSHA standards 1926.1407-1411 specifically address crane operations near power lines, while Subpart V covers broader electrical transmission work. The ANSI/ASME B30.5 standard provides detailed safety guidelines for mobile cranes that complement these federal regulations.
Many states also have their own requirements. For example, Georgia’s High-Voltage Safety Act requires 72-hour notice before working near high-voltage lines—something we always factor into our project timelines.
NIOSH doesn’t mince words about the dangers: “Contact between cranes and overhead power lines is the most common cause of fatal occupational injuries associated with mobile crane operations.” This sobering reality guides our approach to every transmission line project.
De-energize, Ground or Keep Your Distance
The safest approach to working near power lines follows a simple hierarchy:
First, try to de-energize and visibly ground the lines where you’re working. This eliminates the hazard entirely—always the best solution when possible.
When de-energizing isn’t an option (and let’s be honest, utilities are often reluctant to cut power to their customers), maintaining proper clearance becomes essential.
Coordination with utility companies is critical in these situations. We always establish contact early in the planning process to determine what’s possible. Sometimes we can schedule work during planned outages, creating win-win situations.
OSHA’s “20-foot trigger rule” is something we drill into every team member: if any part of the crane, load line, or load could come within 20 feet of a power line (up to 350 kV), additional safety measures kick in automatically. This isn’t just a guideline—it’s a line in the sand we never cross without proper protocols.
When working with visibly grounded lines, we ensure the grounds are attached properly to the tower structure, clearly visible to our operators, and installed only by qualified electrical professionals. As the NIOSH safety alert emphasizes, we always “assume all overhead lines are energized with lethal voltages.”
Spotters, Signals & Work-Zone Demarcation
Clear communication can mean the difference between a smooth operation and disaster when working near energized lines.
Our dedicated observers (spotters) are the crane operator’s extra set of eyes. We make sure they have direct communication with the operator, usually through dedicated radio channels with clear protocols. They position themselves where they can see both the power lines and equipment clearly.
One of our veteran operators, Mike, puts it perfectly: “Your spotter is your lifeline when working near power—they’re as important as any safety device on the crane.” We train our spotters to maintain constant awareness of the entire work zone, not just the obvious hazards.
We exclusively use non-conductive taglines when guiding loads near energized equipment. These specialized ropes prevent current from traveling through the worker if something goes wrong. It’s a simple precaution that has prevented countless accidents.
Our work-zone demarcation is clear and unmistakable. We use high-visibility warning lines, barriers, and flags to establish boundaries based on voltage-specific clearance requirements. Every crew member understands what these markers mean before stepping foot on site.
Ground Conditions & Crane Stability
Even perfect electrical safety protocols won’t help if your crane tips over. Ground conditions are the literal foundation of crane safety, yet they’re often overlooked.
Outrigger mats are essential tools in our safety arsenal. Rather than using standard mats for every situation, we calculate specific requirements based on soil conditions at each site. This might take more time initially, but prevents dangerous settling during critical lifts.
OSHA regulation 1926.1402 places responsibility for ground conditions on the “controlling entity” (usually the general contractor). They must ensure the ground is firm, drained, and properly graded; identify and fill voids; locate underground hazards; and provide adequate support for equipment.
Before setting up, we perform thorough soil bearing checks that evaluate soil type, compaction level, moisture content, and proximity to excavations. I’ve seen too many operators assume that their massive machines can handle any surface—a dangerous misconception that has led to tragic accidents.
During one project near Pittsburgh, our team identified a poorly compacted area where a previous contractor had backfilled a trench. By relocating our crane position slightly and using larger outrigger mats, we avoided a potentially dangerous situation.
For more information about the crane operation standards we follow at Sky Point Crane, visit our safety standards page.
Crane use in the construction of electrical transmission lines: Clearance Distances & Engineering Controls
Crane use in the construction of electrical transmission lines requires strict adherence to minimum clearance distances based on voltage. These aren’t arbitrary numbers—they’re calculated based on the physics of electrical arcing and the potential for current to “jump” through air.
Minimum Approach Distances for Crane use in the construction of electrical transmission lines
OSHA’s Table A provides the definitive clearance requirements:
| Voltage (kV) | Minimum Clearance Distance |
|---|---|
| Up to 50 kV | 10 feet |
| Over 50-200 kV | 15 feet |
| Over 200-350 kV | 20 feet |
| Over 350-500 kV | 25 feet |
| Over 500-750 kV | 35 feet |
| Over 750-1000 kV | 45 feet |
The “10-foot rule” serves as the baseline minimum, but clearance increases with voltage. For lines exceeding 50 kV, the formula is 10 feet plus 0.4 inches per kV above 50 kV (or twice the insulator length, whichever is greater).
In-transit clearances (when the crane is traveling with no load and boom/mast lowered) are reduced:
– 4 feet for lines less than 50 kV
– 10 feet for lines up to 345 kV
– 16 feet for lines up to 750 kV
“Electrical arcs can reach 5,000-35,000°F without direct contact,” explains one utility safety document. This is why maintaining proper clearance is essential even without physical contact.
It’s worth noting that induced voltage is another hazard, particularly near transmitter towers. When working in these areas, the crane’s upper rotating structure must be grounded directly to dissipate potential charge.
Engineering Controls that Improve Crane use in the construction of electrical transmission lines
When working near energized lines, multiple layers of protection are recommended:
Cage Boom Guards provide physical barriers on the boom to prevent accidental contact. While not impact-proof, they can prevent inadvertent brushing against lines.
Automatic Shut-offs and proximity warning devices alert operators when approaching minimum clearance distances. At Sky Point Crane, we view these as supplements to—never replacements for—proper planning and spotters.
Dielectric Load Hooks with insulating links prevent current from traveling from an energized line through the load to ground. However, as OSHA notes, these devices “do not waive compliance with any part of the regulation.” They’re an additional safeguard, not a substitute for clearance.
One industry expert cautions: “No practical barrier can absolutely prevent contact of a crane with an overhead line.” This underscores why multiple protective measures must work in concert.
For detailed information on OSHA’s power-line safety requirements, you can refer to the OSHA guidance on power-line safety.
Planning, Monitoring & Communication Procedures
The success of crane use in the construction of electrical transmission lines isn’t just about having the right equipment—it’s about what happens before the first outrigger touches the ground. At Sky Point Crane, we’ve learned that careful planning and clear communication save both lives and time.
Pre-Job Planning
Every transmission line project begins with a thorough hazard analysis that leaves nothing to chance. Our teams start by creating a detailed 360° work-zone map that identifies every overhead line within reach of our equipment. This isn’t just checking what’s directly overhead—it’s understanding what could be reached if the crane were to operate at its maximum radius.
“I’ve never once regretted spending extra time planning a high-voltage lift,” says Mike, one of our veteran project managers. “But I’ve seen plenty of folks wish they’d taken more time before getting started.”
Our pre-job planning always includes a comprehensive lift plan review where we document clearance strategies, emergency procedures, and contingency plans. This is followed by a crew briefing where we make sure everyone—from operators to ground personnel—understands their role and the safety protocols we’ll follow.
The 3D lift planning technology we’ve acceptd at Sky Point Crane has been a game-changer for transmission line work. It allows us to visualize potential clearance issues and optimize crane positioning before anyone sets foot on site. For one recent project near Pittsburgh, this technology helped us identify a potential interference that would have been difficult to spot during a standard site visit.
Utility & Stakeholder Coordination
Working near high-voltage lines means developing strong relationships with utility companies. Most states require at least 72 hours’ written notice (excluding weekends and holidays) before working near high-voltage lines. Once notified, utilities must typically respond within two working days with exact voltage information.
For complex projects, we often request an on-site utility representative. Their presence provides an invaluable extra layer of safety and can help resolve unexpected issues quickly.
I remember one particularly challenging project in Western Pennsylvania that required coordinating with three different utilities whose lines crossed our work zone. Instead of treating this as a headache, we brought all stakeholders together during planning and finded a two-hour window when one crossing line could be safely de-energized. This allowed us to complete the most challenging lift with significantly improved safety margins—a win for everyone involved.
Real-Time Monitoring & Weather Factors
Even the best-laid plans need constant monitoring because conditions change rapidly during transmission line construction. While most crane manufacturers specify maximum operational wind speeds of 20-30 mph, we often implement more conservative limits when working near energized lines.
Weather affects more than comfort—it directly impacts safety. Power lines sag more during hot weather, potentially reducing your clearance distances. Morning dew can affect ground stability under your outriggers. Even barometric pressure changes can subtly alter how your equipment performs.
“I’ve seen a 10-degree temperature increase significantly change conductor sag,” explains our operations director. “That’s why we constantly reassess conditions throughout the day, not just at startup.”
Special attention is also required when working in induced voltage zones near transmitter towers. These areas demand specific grounding procedures to dissipate potential charge buildup on the crane’s upper rotating structure.
The soil beneath your outriggers deserves ongoing attention too. Settlement during operation can gradually change your boom position relative to overhead lines—what started as a safe clearance might diminish over time without proper monitoring.
For more information about how we maximize efficiency through careful planning and real-time monitoring, visit our page on 3D lift efficiency.
Training, Emergency Response & Lessons Learned
The human element remains the most critical factor in safe crane use in the construction of electrical transmission lines. At Sky Point Crane, we invest heavily in training programs that exceed minimum requirements.
All our crane operators hold NCCCO (National Commission for the Certification of Crane Operators) certification, which includes specific modules on power line safety. Additionally, our signal persons and spotters receive specialized electrical hazard training.
“You can have the best equipment in the world, but without proper training, it’s just expensive metal,” says our safety director. “We believe in training until safety becomes second nature.”
A key component of our training includes understanding “step potential”—the voltage gradient that exists in the ground surrounding an energized object. If a crane becomes energized, the voltage in the ground decreases with distance. Taking large steps or jumps creates a circuit through the body between points of different voltage, which can be deadly.
Our training incorporates lessons from historical case studies that still send shivers down my spine. We review incidents like the worker who was holding a ladder that swung into 7,200V lines, the steel erectors electrocuted when a framing member contacted a 23,000V line, and the worker electrocuted while adjusting outriggers when a boom contacted 13,800V lines.
By studying these tragic incidents, we reinforce that these aren’t just rules—they’re life-saving practices developed from real-world experiences. As I tell our new team members, “These regulations are written in blood. We honor those we’ve lost by learning from their stories.”
What to Do If Contact Occurs
Despite all precautions, emergency response protocols are essential. If crane contact with a power line occurs:
- Stay in the Cab if possible. The operator should remain in the crane until the lines are de-energized.
- Call 911 and the utility emergency number immediately.
- Keep Others Away. Anyone on the ground should stay at least 50 feet away.
- If Forced to Exit (due to fire or other imminent danger), the operator should:
- Jump clear of the equipment with feet together
- Land with feet together
- Shuffle away with small steps, keeping feet close together and on the ground
- Never touch the crane and the ground simultaneously
As one safety expert puts it: “In an electrical emergency, your first instinct may be wrong. Running—which creates different contact points with the ground—can be fatal.”
At Sky Point Crane, we conduct regular emergency drills to ensure these procedures become instinctive for our teams. I’ve seen how these drills pay off—last year, when a boom came within proximity of a line during a wind gust, our entire crew executed their roles flawlessly, averting a potential disaster.
Frequently Asked Questions
1. Who is responsible for maintaining clearance?
The crane operator and lift director share responsibility for maintaining safe clearance. However, under OSHA regulations, the employer must implement a system to identify and control hazards. This includes proper planning, training, and providing necessary safety equipment.
At Sky Point Crane, we believe safety is everyone’s responsibility. While regulations assign specific duties, we foster a culture where any team member can and should speak up about potential hazards.
2. Can warning devices replace spotters?
No. While proximity warning devices provide an additional layer of protection, OSHA is clear that they do not waive any part of the clearance regulations. At Sky Point Crane, we view technology as a supplement to—never a replacement for—trained human observers.
I often tell clients, “Technology is wonderful until it fails. A well-trained spotter never runs out of batteries.”
3. How are cranes grounded near transmitter towers?
When working near transmitter towers where induced voltage is possible, we use ground jumper cables to connect the crane’s upper rotating structure directly to a ground. This prevents charge buildup that could otherwise cause shock even without direct line contact.
Working near transmitter towers requires extra vigilance. Even without touching lines, induced current can energize equipment. Proper grounding dissipates this energy safely into the earth rather than through an unsuspecting worker.
Conclusion
Crane use in the construction of electrical transmission lines is where precision engineering meets rigorous safety protocols. Here at Sky Point Crane, we’ve built our reputation through years of successful transmission line projects across Western and Central Pennsylvania, Ohio, West Virginia, and Maryland.
When you work with us, you’re getting more than just equipment. Our turnkey crane services bring together thoughtful planning, NCCCO-certified operators who know their business, and carefully selected equipment that meets the unique challenges of transmission line work. Whether it’s a scheduled project or an emergency repair at 3 AM, our 24/7 response team is ready to roll.
We’ve worked hard to build a safety culture that goes beyond checking boxes on a compliance form. At the end of the day, what matters most is that everyone goes home to their families safely. One of our veteran operators puts it best: “In this business, there are no small mistakes around high voltage. We do it right, or we don’t do it at all.”
By blending our deep knowledge of regulations with decades of hands-on field experience, we’ve become a trusted partner for utility companies throughout our service region. Our teams understand the critical nature of power infrastructure work – when the lights go out, people notice, and restoration needs to happen quickly but safely.
For more details about how we can support your transmission line construction needs and other lifting projects, visit our crane services page.
Remember this: When working around high voltage, there’s simply no substitute for proper planning, maintaining adequate clearance, and having qualified personnel on site. The power grid keeps our modern world running, and we take pride in helping build and maintain this vital infrastructure—safely, efficiently, and with the kind of professionalism you can count on.
We may work with steel and machinery, but at Sky Point Crane, it’s our people who make the difference. And that’s something no voltage can measure.
